引擎鏈條 Engine chain
-
1,901
知識文章

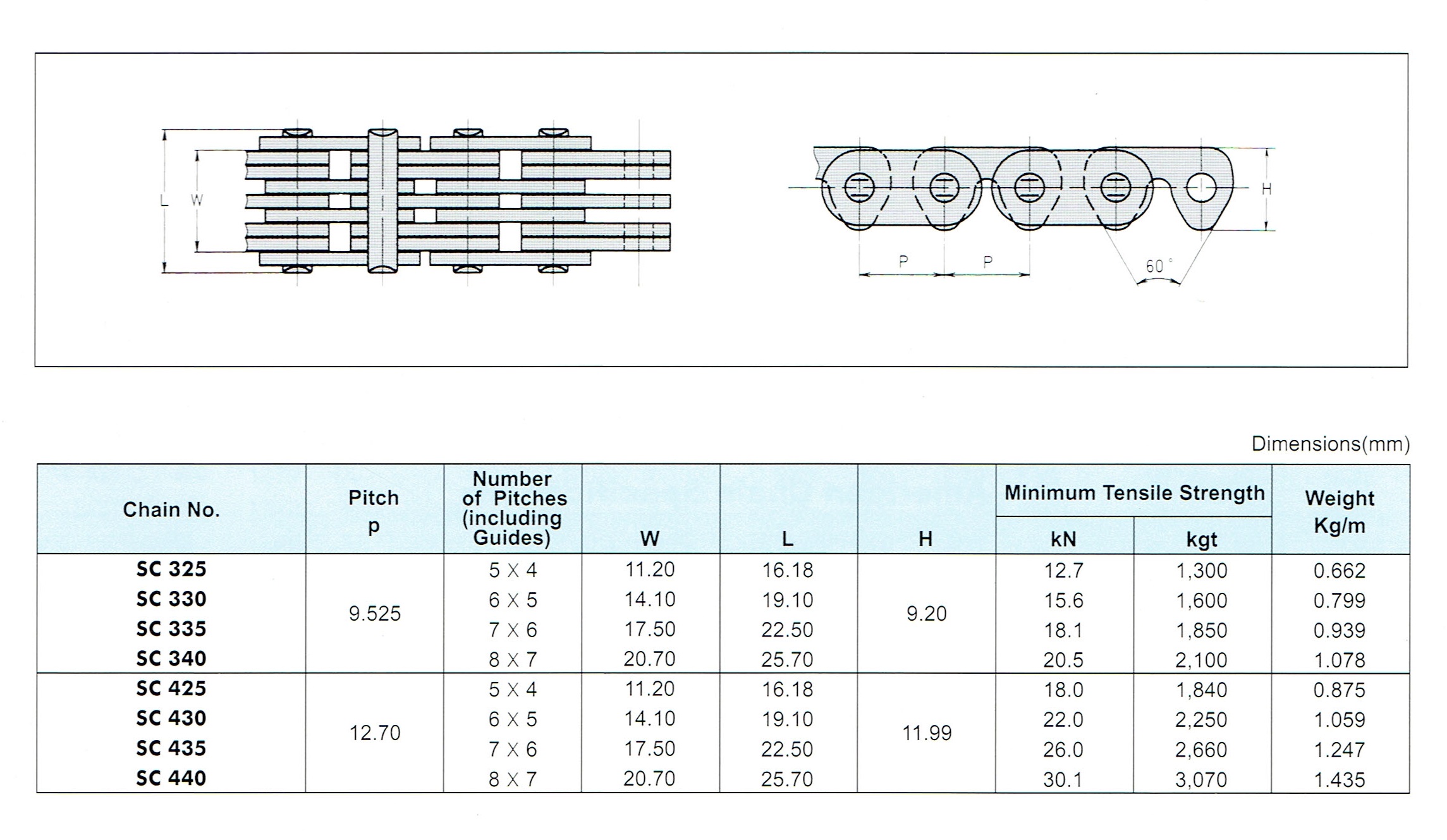

Chain No. ｜P｜Number of Pitches(including Guides)｜Width Between Guides W｜Pin Length L｜Link Height H｜Minimum Tensile Strength kN/kgt｜Weight Kg/m
SC 325｜9.525｜5x4｜11.2｜16.18｜9.20｜12.7/1,300｜0.662
SC 330｜9.525｜6x5｜14.1｜19.10｜9.20｜15.6/1,600｜0.799
SC 335｜9.525｜7x6｜17.5｜22.50｜9.20｜18.1/1,850｜0.939
SC 340｜9.525｜8x7｜20.7｜25.70｜9.20｜20.5/2,100｜1.078
SC 425｜12.70｜5x4｜11.2｜16.18｜11.99｜18.0/1,840｜0.875
SC 430｜12.70｜6x5｜14.1｜19.10｜11.99｜22.0/2,250｜1.059
SC 435｜12.70｜7x6｜17.5｜22.50｜11.99｜26.0/2,660｜1.247
SC 440｜12.70｜8x7｜20.7｜25.70｜11.99｜30.1/3,070｜1.435
